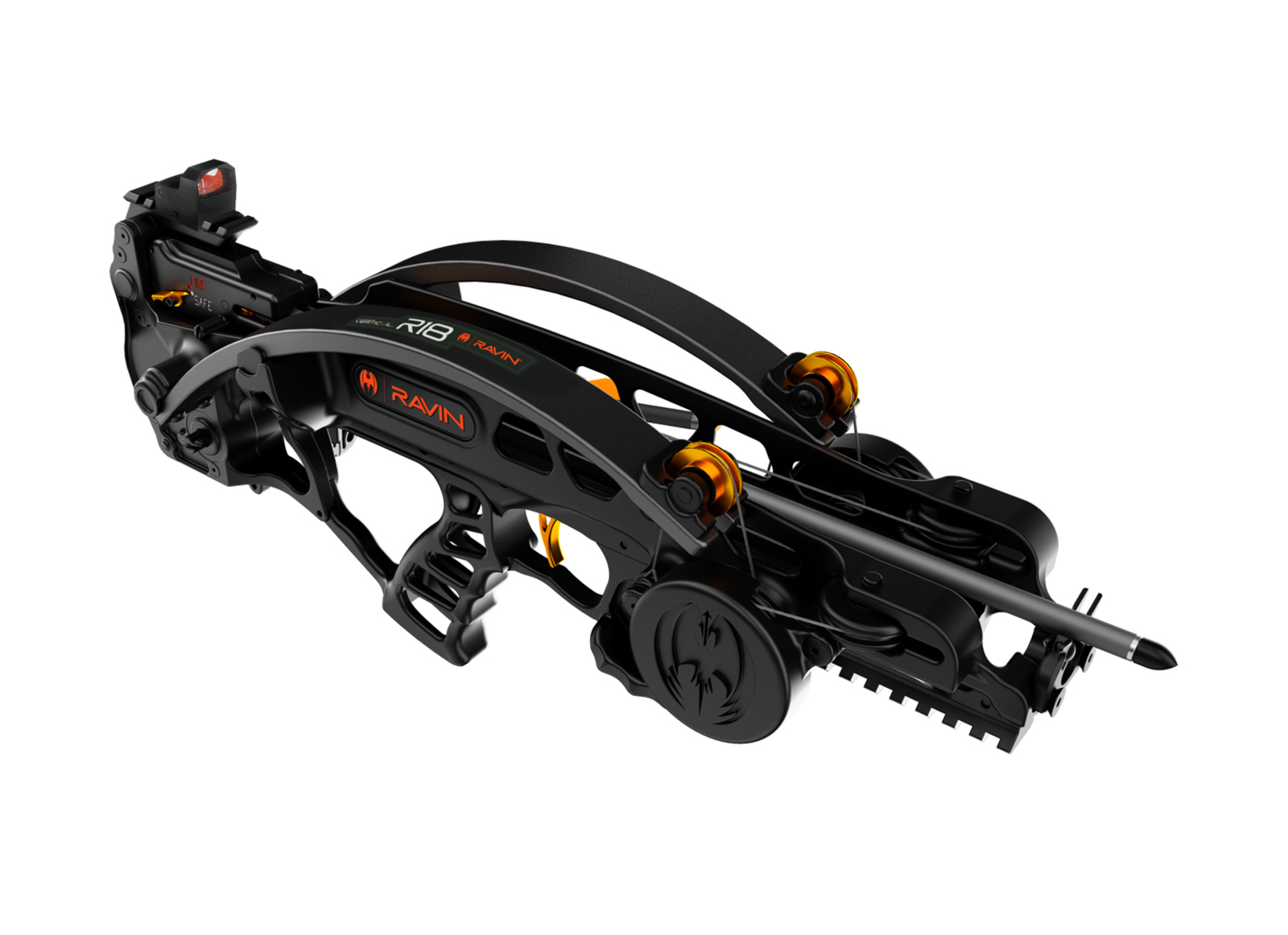

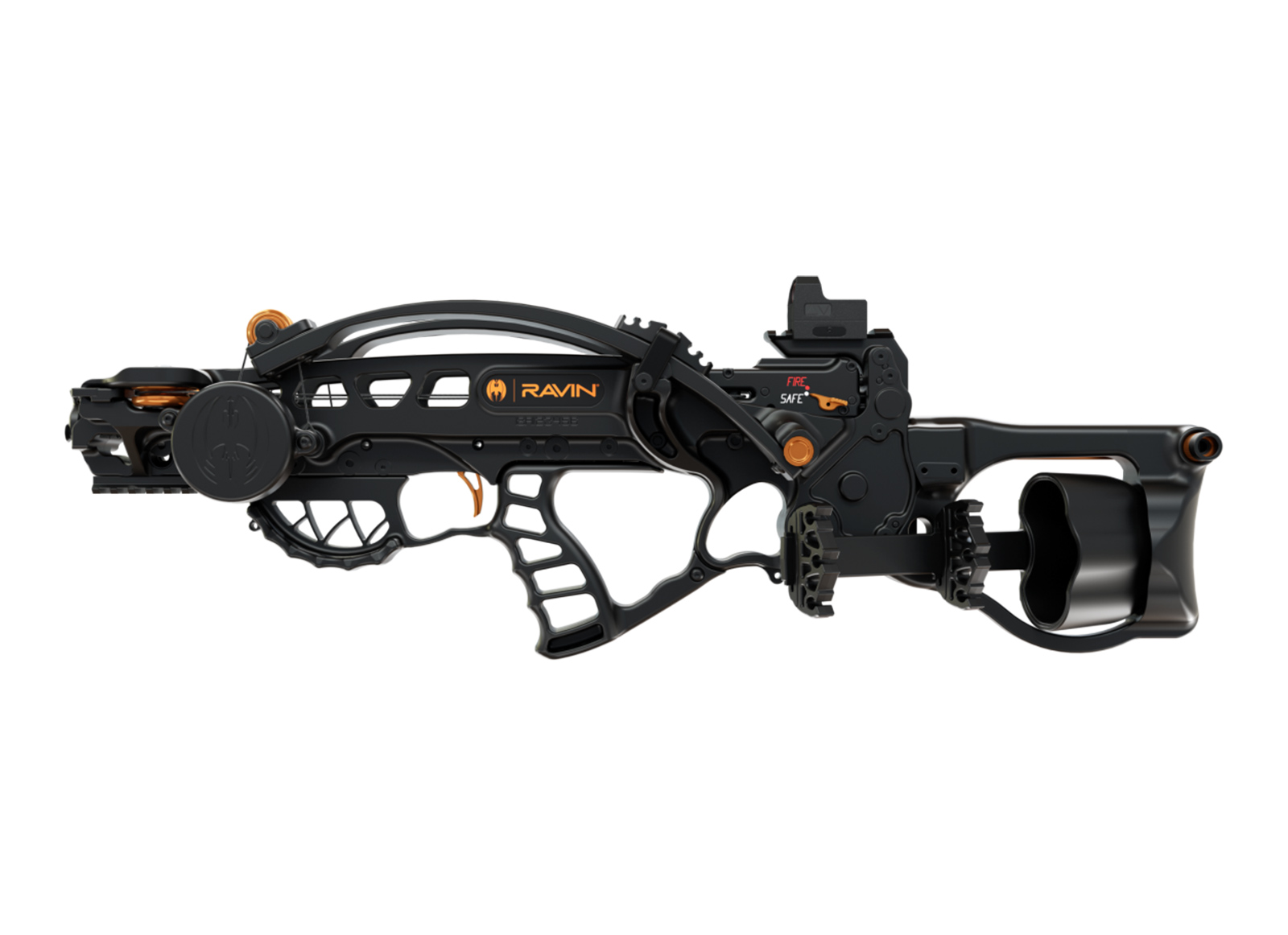

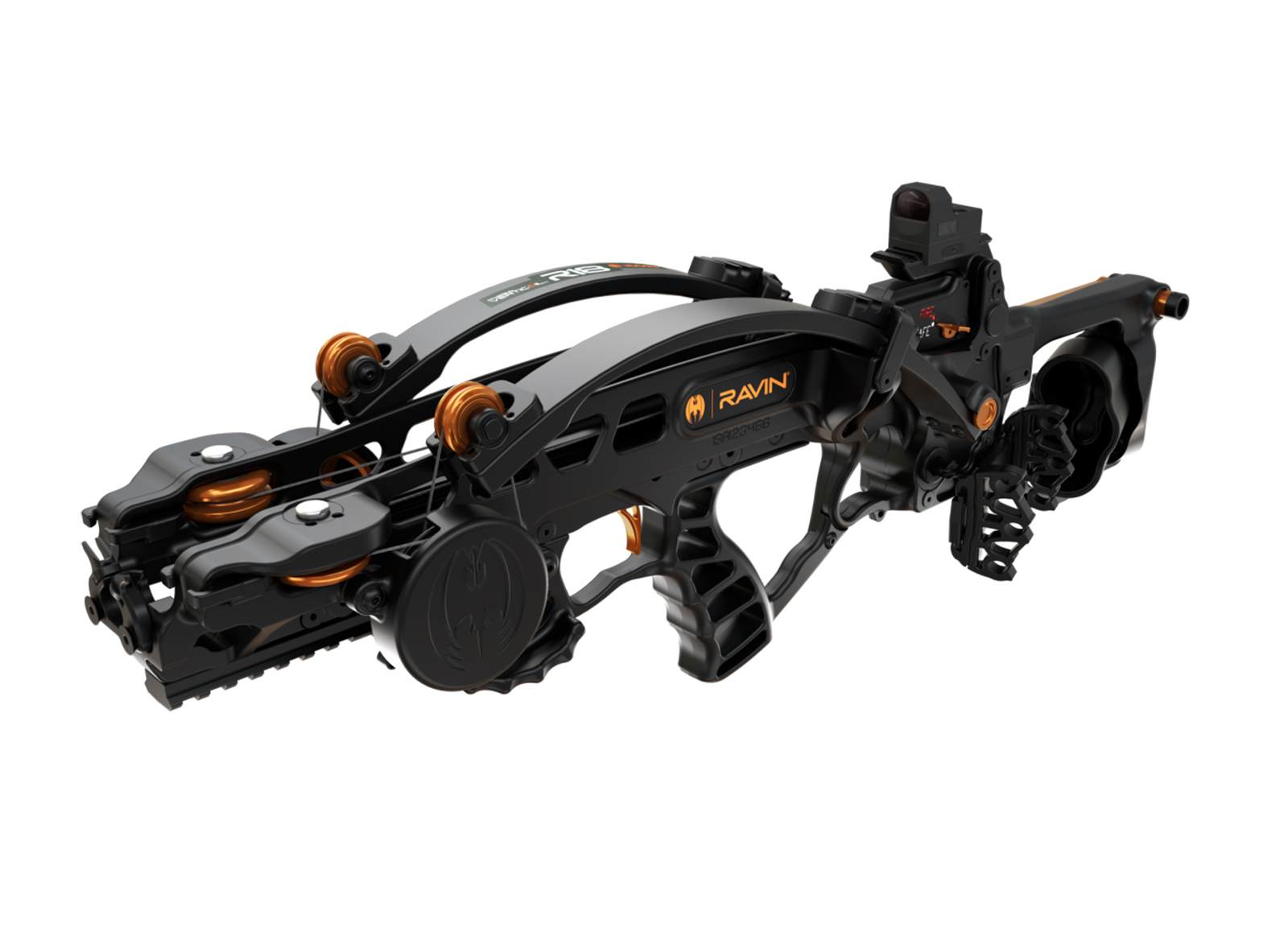

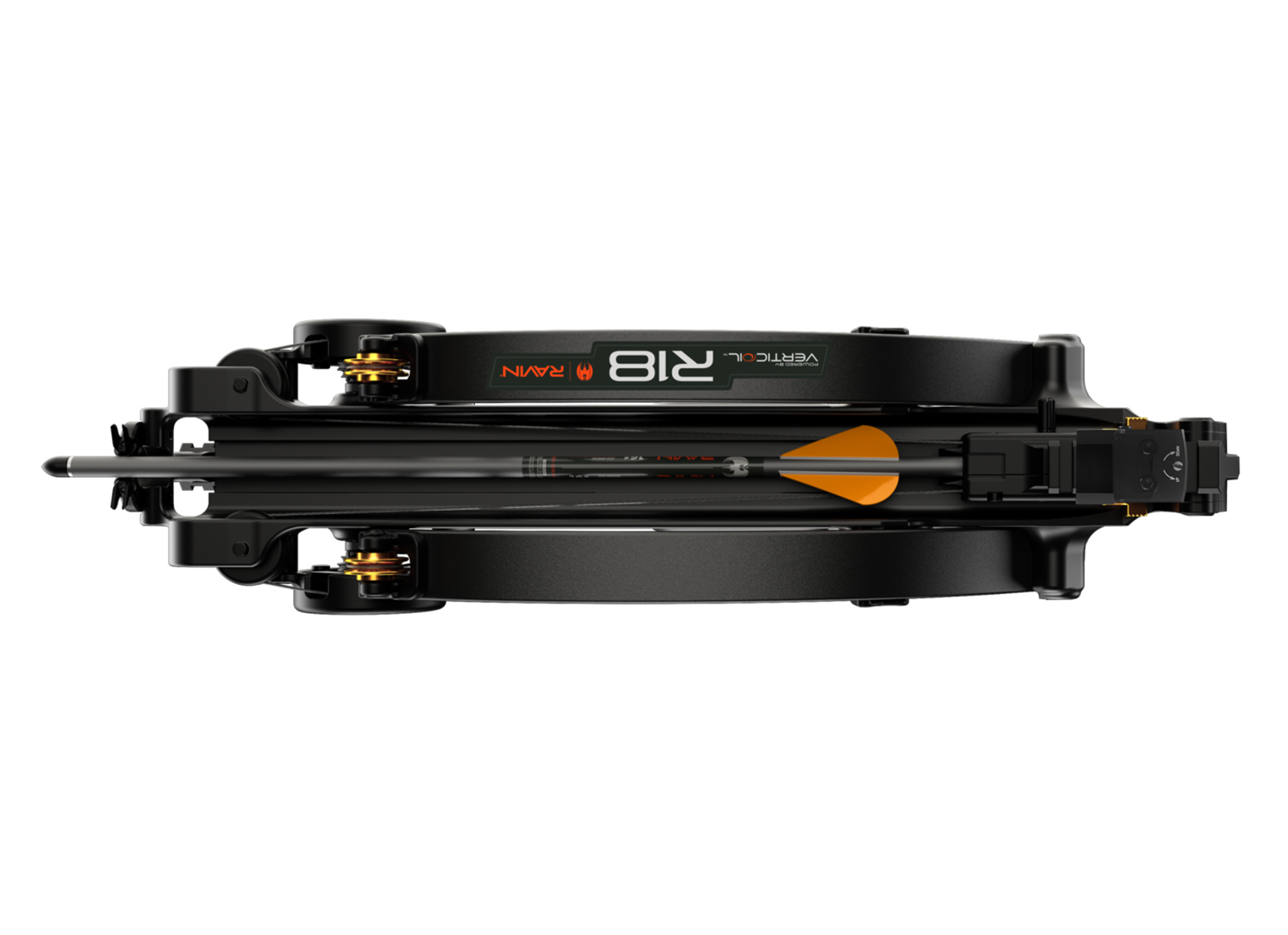

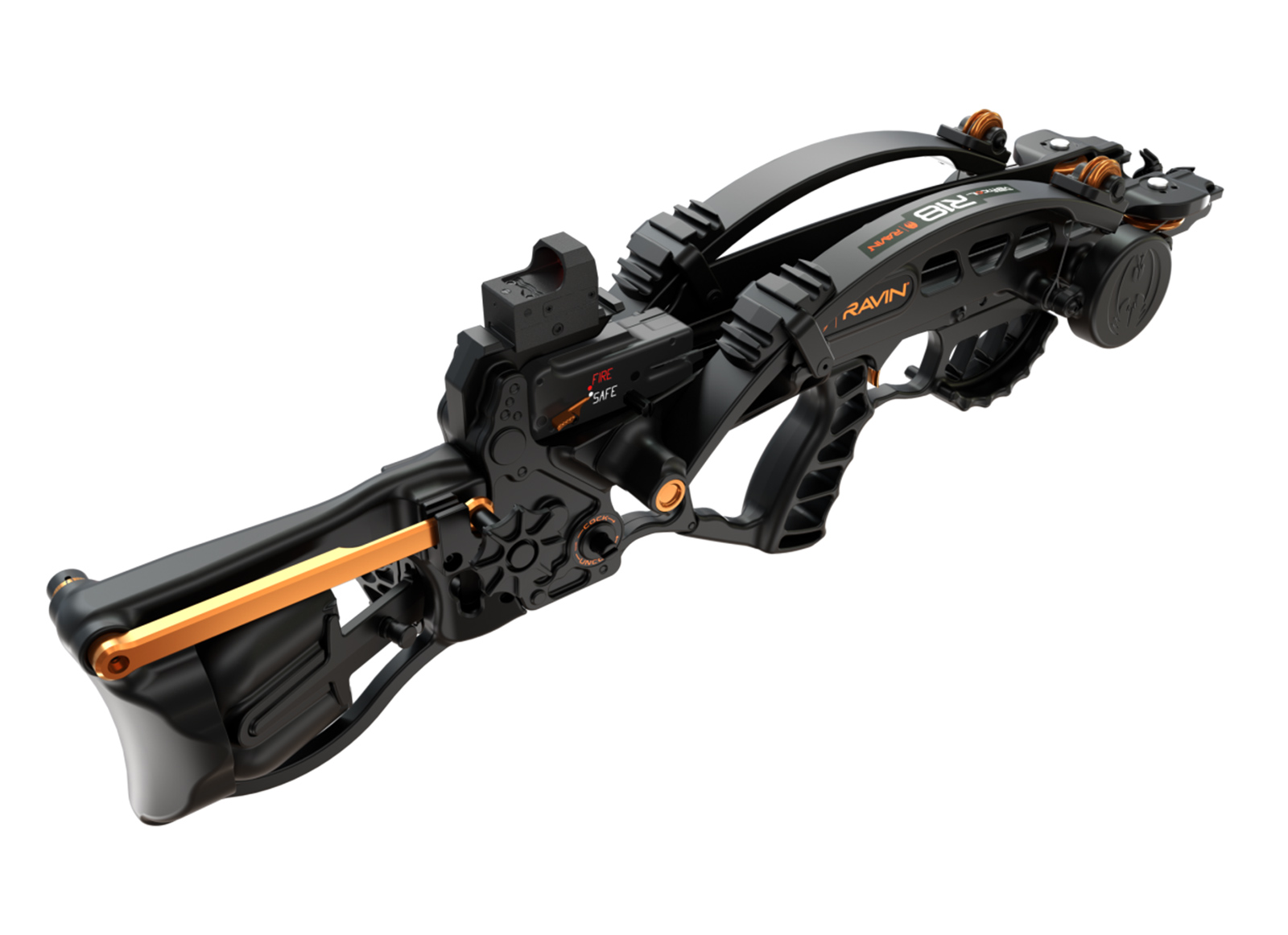

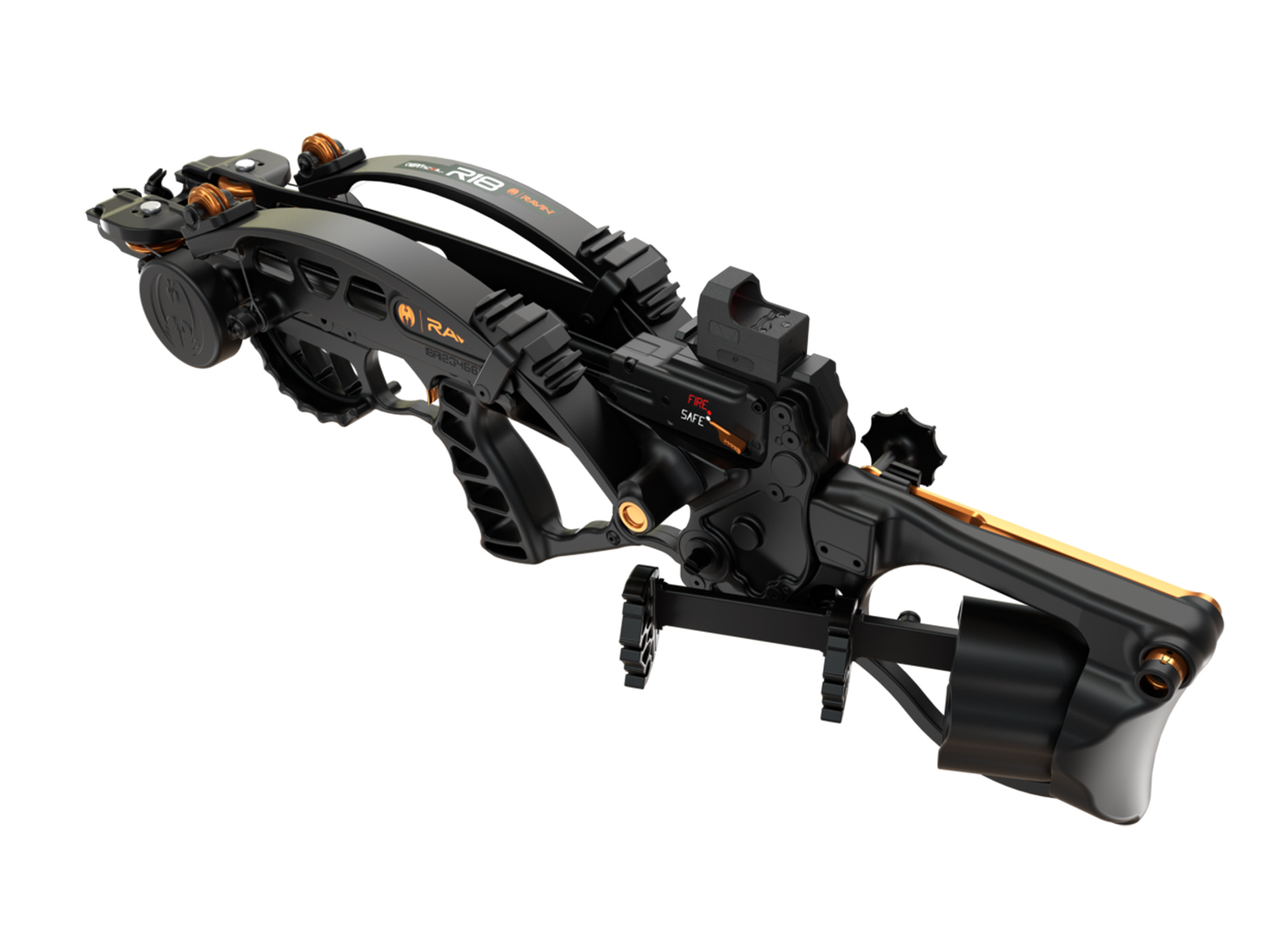

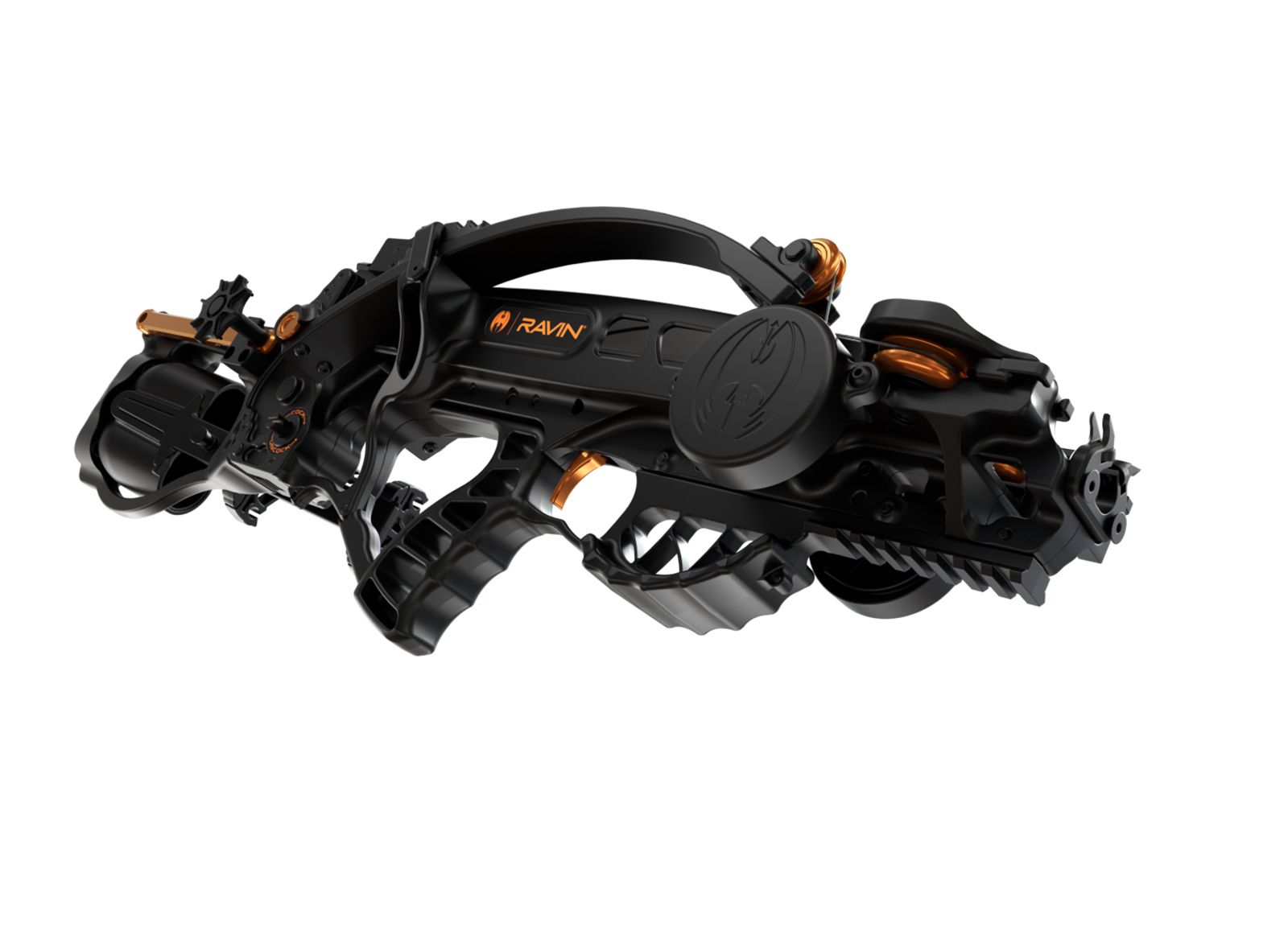

RAVIN BALESTRA COMPOUND LLC RAVIN R18

Utilizing the new proprietary VertiCoil Cam System, the R18 is the shortest Ravin ever created at just 25 inches in length. The VertiCoil Cam System rotates the ultra-small cams 720 degrees, coiling the strings and cables around the cam and cam axle allowing an axle-to-axle height of just 1.3 inches cocked or 4.1 inches when uncocked, with a static overall width of 4.75”. The R18 is a takedown style crossbow with limbs that expand vertically, shooting 330 feet per second. The R18 includes a detachable stock with an integrated removable quiver system, making the length a short 18″ with the stock removed. The unique 6-pound crossbow features the new Ravin 3-Dot Reflex Sight for easy target acquisition, and includes the Ravin built-in cocking mechanism, allowing for an easy draw.

• 330 FPS
• Weight: 6 LBS
• Length:18” Without Stock, 25” With Stock
• Height Axle to Axle Cocked: 1.3”
• Height Axle to Axle Uncocked: 4.1”
• Overall Width: 4.75”
• Power-Stroke: 13”
• Kinetic Energy: 85 FT LBS
• Draw Effort: 12 LBS
• Draw Weight: 250#
• VertiCoil Cam System
• Detachable Stock/Quiver
• Fully Assembled/Pre-Tuned
• 3 – 16” .003 350 Grain R18 Arrows with Field Points
• 1 – Removable Draw Handle
• Ravin 3 Dot Reflex Sight
• Built-In Cocking Mechanism
• Anti-Dry Fire/Auto Safety
• Built-in Sling Mounts
