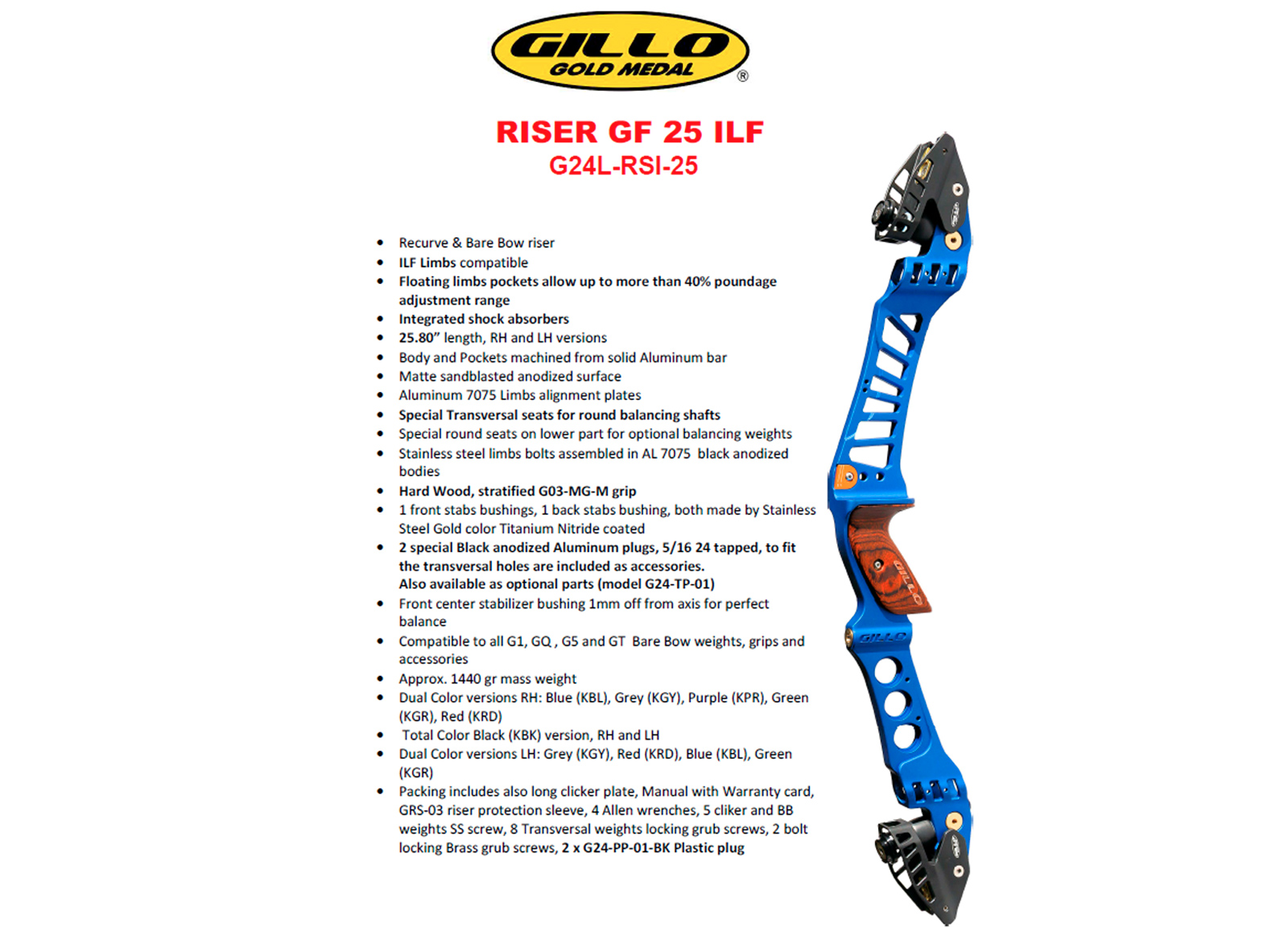

GILLO RISER GF 25 ILF

NEW GILLO GF: G24L-RSI-25

• Recurve & Bare Bow riser
• ILF Limbs compatible
• Floating limbs pockets allow up to more than 40% poundage adjustment range
• Integrated shock absorbers
• 25.80” length, RH and LH versions
• Body and Pockets machined from solid Aluminum bar
• Matte sandblasted anodized surface
• Aluminum 7075 Limbs alignment plates
• Special Transversal seats for round balancing shafts
• Special round seats on lower part for optional balancing weights
• Stainless steel limbs bolts assembled in AL 7075 black anodized bodies
• Hard Wood, stratified G03-MG-M grip
• 1 front stabs bushings, 1 back stabs bushing, both made by Stainless
• Steel Gold color Titanium Nitride coated
• 2 special Black anodized Aluminum plugs, 5/16 24 tapped, to fit the transversal holes are included as accessories.
• Also available as optional parts (model G24-TP-01)
• Front center stabilizer bushing 1mm off from axis for perfect
• balance
• Compatible to all G1, GQ , G5 and GT Bare Bow weights, grips and
• accessories
• Approx. 1440 gr mass weight

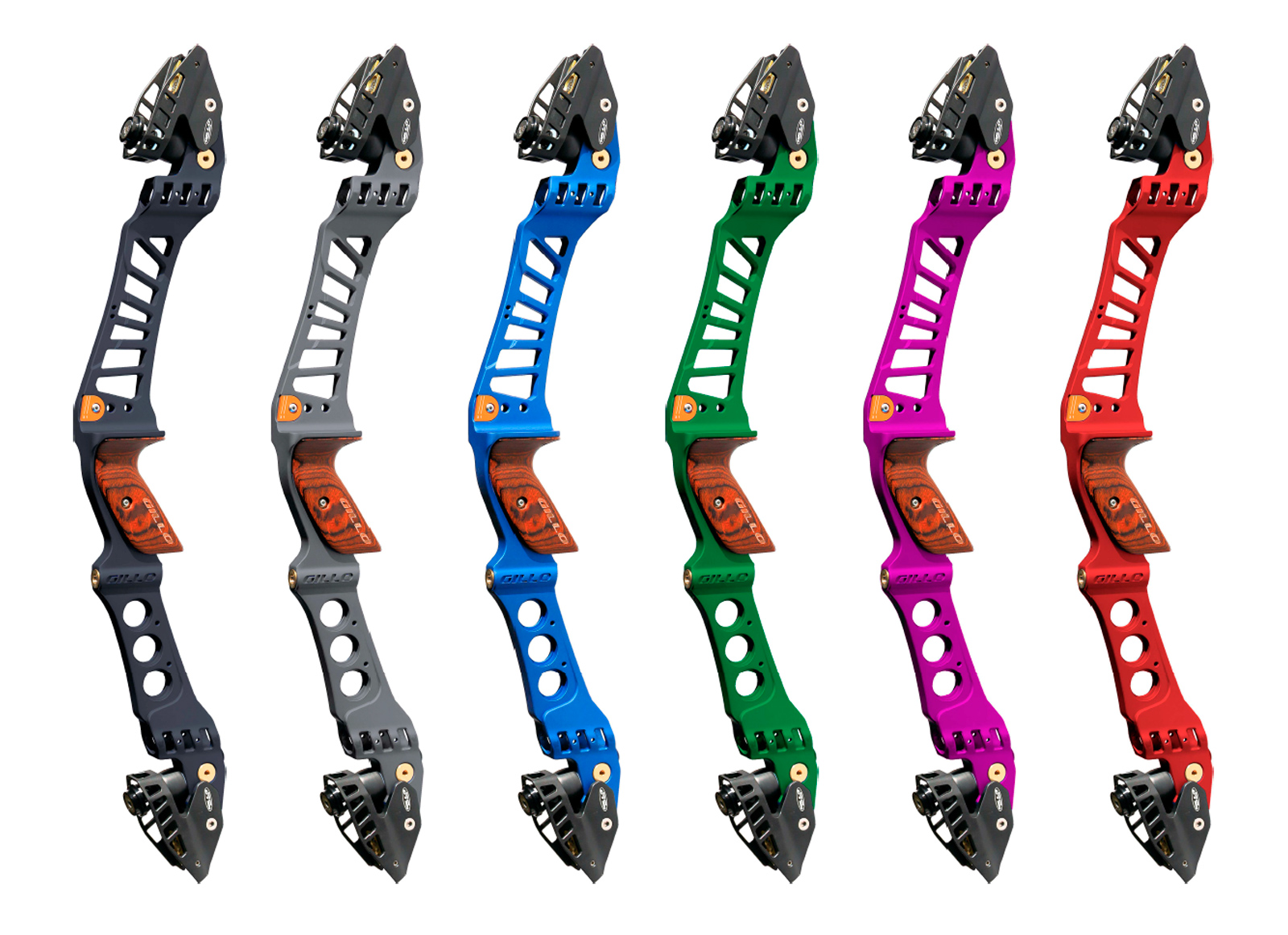

• Dual Color versions RH: Blue (KBL), Grey (KGY), Purple (KPR), Green (KGR), Red (KRD)
• Total Color Black (KBK) version, RH and LH
• Dual Color versions LH: Grey (KGY), Red (KRD), Blue (KBL), Green (KGR)

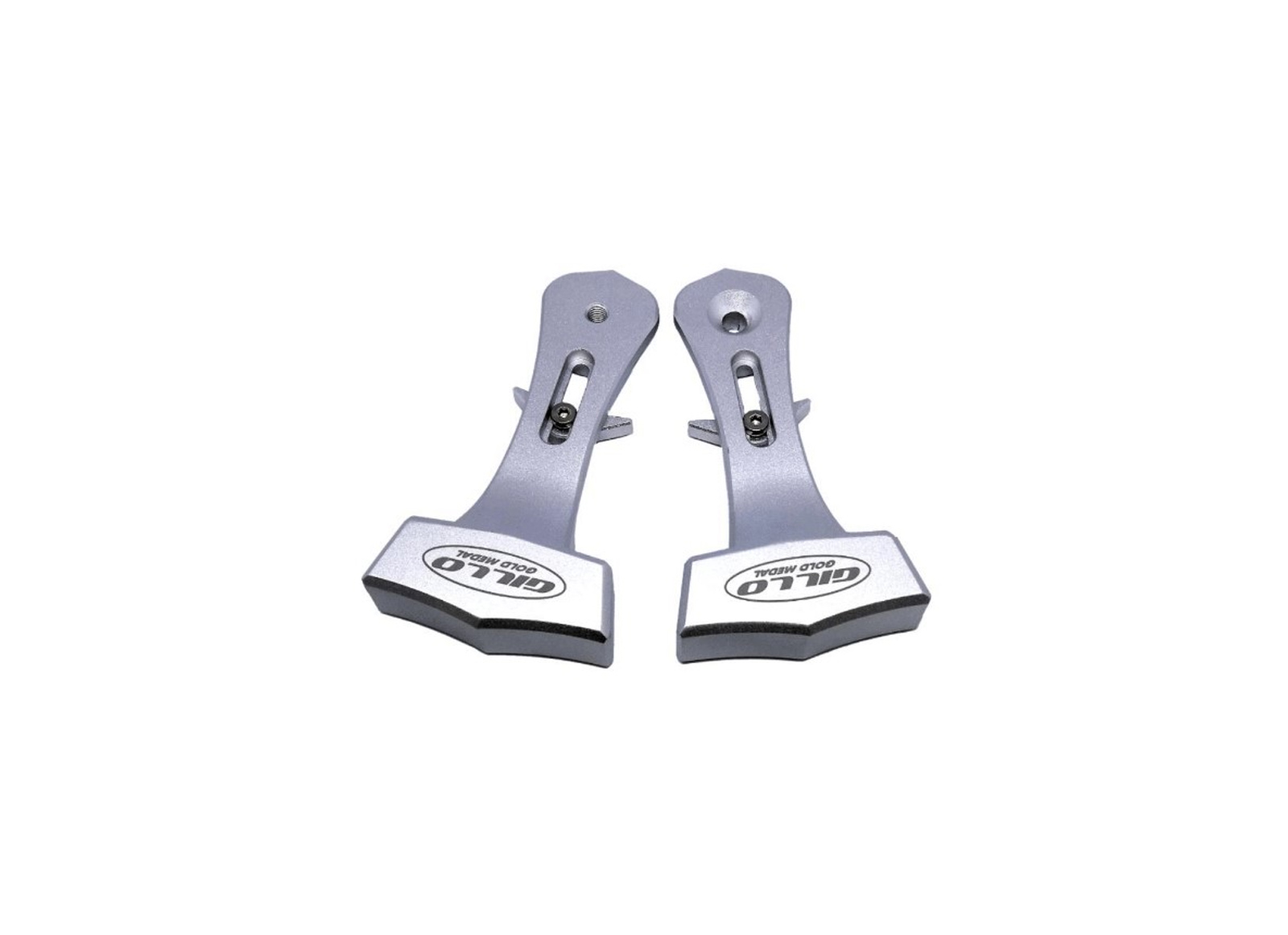

• Packing includes also long clicker plate, Manual with Warranty card, GRS-03 riser protection sleeve, 4 Allen wrenches, 5 cliker and BB weights SS screw, 8 Transversal weights locking grub screws, 2 bolt locking Brass grub screws, 2 x G24-PP-01-BK Plastic plug
