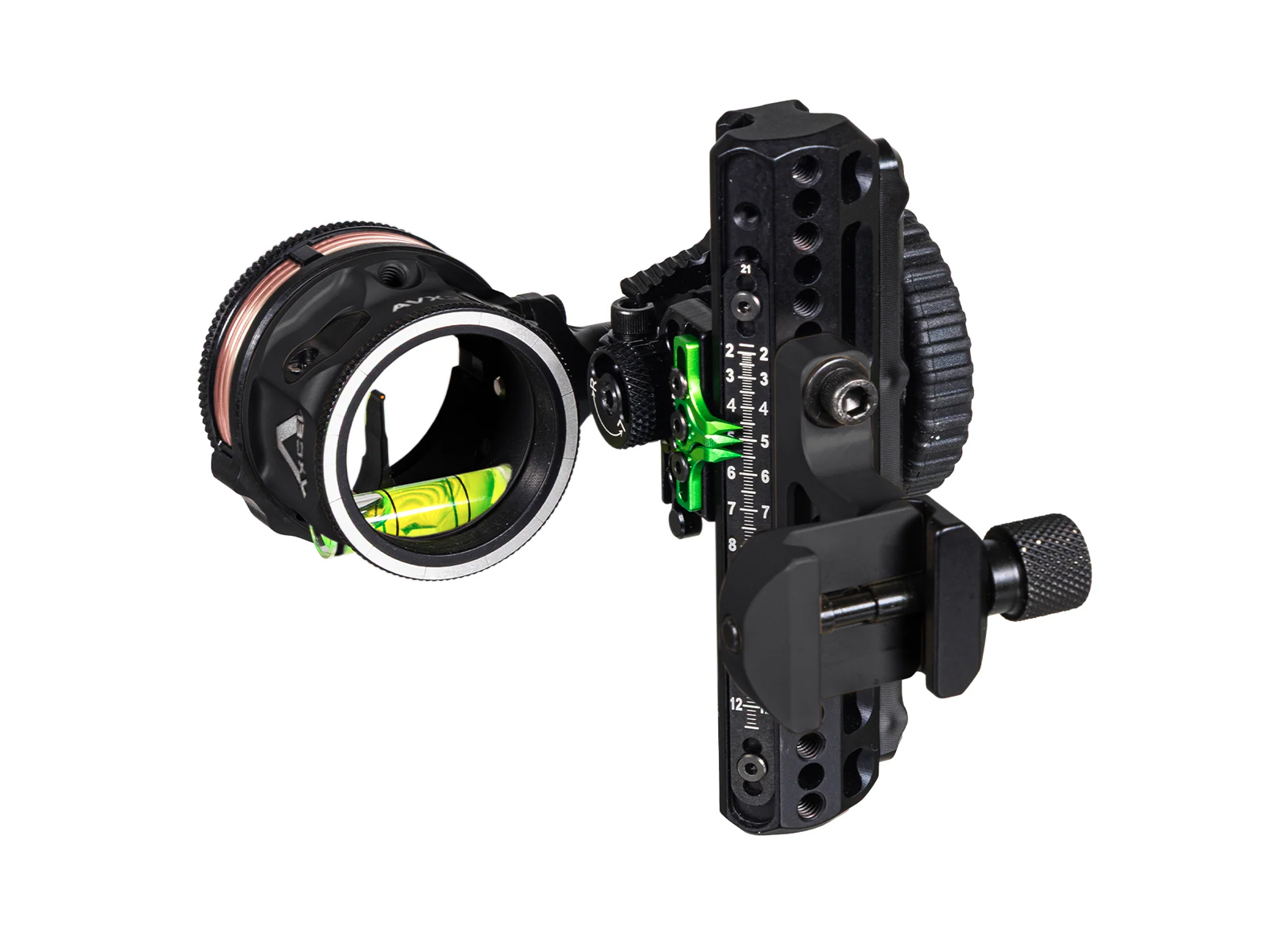

AXCEL PICATINNY PIN SIGHT .019

The AXCEL® Driver CK sets a new standard in monopin sights. Precision-manufactured and machined at the TRU Ball®/AXCEL® facilities in Virginia, USA, it builds on the technological legacy of sights that have won the world's most important competitions.

This Picatinny-mount version is specifically designed to mount directly on the integrated rail of modern risers. The in-line mounting shifts the weight of the sight along the bow's central axis, dramatically improving overall balance and leaving plenty of lateral space for mounting a quiver.

Cerakote® finish for extreme durability

The Cerakote® treatment provides the aluminum frame with a ceramic coating that is highly resistant to corrosion, scratches, wear, and extreme temperatures. The sight remains protected in the harshest environmental conditions, maintaining an aggressive, anti-glare look.

AVX PLUS Single Pin Scope: Absolute Visual Clarity

The high-performance AVX PLUS scope offers a crisp, distortion-free field of view. The single-pin configuration allows you to focus on the aiming point with maximum clarity, reducing any obstructions on the target. Thanks to Rheostat technology, you can quickly adjust the light intensity on the fiber optic based on environmental conditions.

Precision Mechanics and Intuitive Adjustment

Rubberized Elevation Wheel and Target-Direct Lock: Allows you to set the desired distance with a half-turn of rotation, smoothly and quietly. The locking lever acts along the direction of the target to maintain the lateral aiming point.
Duo-Glide System: Automatic tensioning system that eliminates any mechanical play, ensuring smooth and repeatable sliding with every adjustment.
1st, 2nd & 3rd Axis Micro-Adjustment: Combined micro-adjustable adjustment for the 1st and 2nd axes, with quick-release 3rd axis lockout for surgical fine-tuning.
Micro Deadstop: Allows you to set a quick stop point (e.g. 20 yards) to instantly return to the base distance without having to look at the scale.

Main Features

In-Line Picatinny Mount: Direct front mounting on the bow slide for optimal balance and maximum quiver clearance.
Cerakote® Ceramic Finish: Superior protection against atmospheric agents, scratches and temperature changes.
AVX PLUS Single Pin Scope: Available in 31mm size (AVX-31 PLUS) for optimal target viewing.
Integrated Rheostat Cover: Quickly adjust the brightness of the optical fiber.
Less is More Design: Essential structure with a reduced number of screws and components, for maximum reliability without unnecessary weight (~244 g / 8.6 oz).
Drive Wheel with Rubberized Grip: Quick and precise elevation adjustment with integrated lock lever.
Micro-Adjust Windage (Drift): Micrometric knob for lateral adjustment with tournament-style lock.
Three Adjustable Pointers: 3 independent pointers for precise reading of multiple references on the graduated scales.
HubCap Customization: Integrated system for aesthetically customizing the inside of the elevator wheel.
Made in USA: High precision CNC design and machining 100% Made in USA.

Technical Specifications

Characteristic	Detail
Producer	TRU Ball® / AXCEL® Archery
Model	CK Picatinny AVX PLUS Single Pin Driver
Viewfinder Type	Hunting and 3D Slider / Monopin
Material	CNC machined 6061 aircraft aluminum

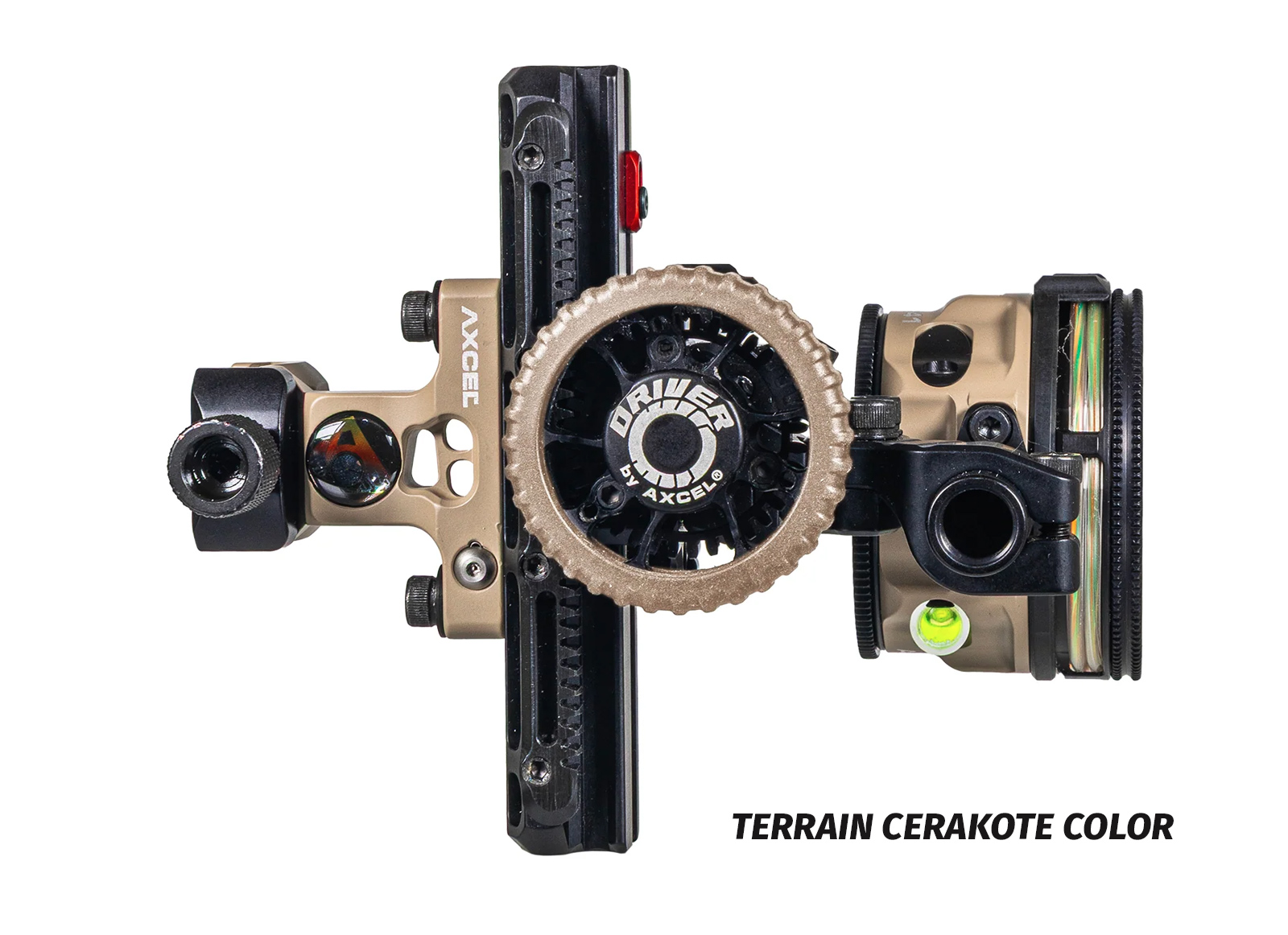

Finish	Cerakote® (color options: Midnight, Evergreen, Terrain)
Attack Type	Picatinny rail
Scope Options	AVX-31 PLUS (31 mm)
Pin Configuration	Single Vertical Pin
Available Fiber Diameters	.019''
Fiber Colors	Green, Red, Yellow, Blue of your choice
Axis Adjustments	1st, 2nd and 3rd micro-adjustable axis
Approximate weight	~8.6 oz (244 g)
Orientation	Available for Right (RH) and Left (LH) users

PRICES	for each
Unit price	€ 419,00

PRICES

for each

Unit price

€ 419,00

Item	Description	Availability	Quantity
A101172-A101173	AXCEL MIRINO DRIVER PLUS SLIDER CK PICATINNY WITH AVX-31- SINGLE PIN .019 GREEN FIBER - MIDNIGHT CERAKOTE	Get it within Fri 04/09
SHOW MORE
A101172-A101174	AXCEL MIRINO DRIVER PLUS SLIDER CK PICATINNY WITH AVX-31- SINGLE PIN .019 RED FIBER - MIDNIGHT CERAKOTE	Not available	Notify me when available
A101172-A101175	AXCEL MIRINO DRIVER PLUS SLIDER CK PICATINNY WITH AVX-31- SINGLE PIN .019 GREEN FIBER - EVERGREEN CERAKOTE	Not available	Notify me when available
A101172-A101176	AXCEL MIRINO DRIVER PLUS SLIDER CK PICATINNY WITH AVX-31- SINGLE PIN .019 RED FIBER - EVERGREEN CERAKOTE	Not available	Notify me when available
A101172-A101177	AXCEL MIRINO DRIVER PLUS SLIDER CK PICATINNY WITH AVX-31- SINGLE PIN .019 GREEN FIBER - TERRAIN CERAKOTE	Not available	Notify me when available
A101172-A101178	AXCEL MIRINO DRIVER PLUS SLIDER CK PICATINNY WITH AVX-31- SINGLE PIN .019 RED FIBER - TERRAIN CERAKOTE	Not available	Notify me when available
