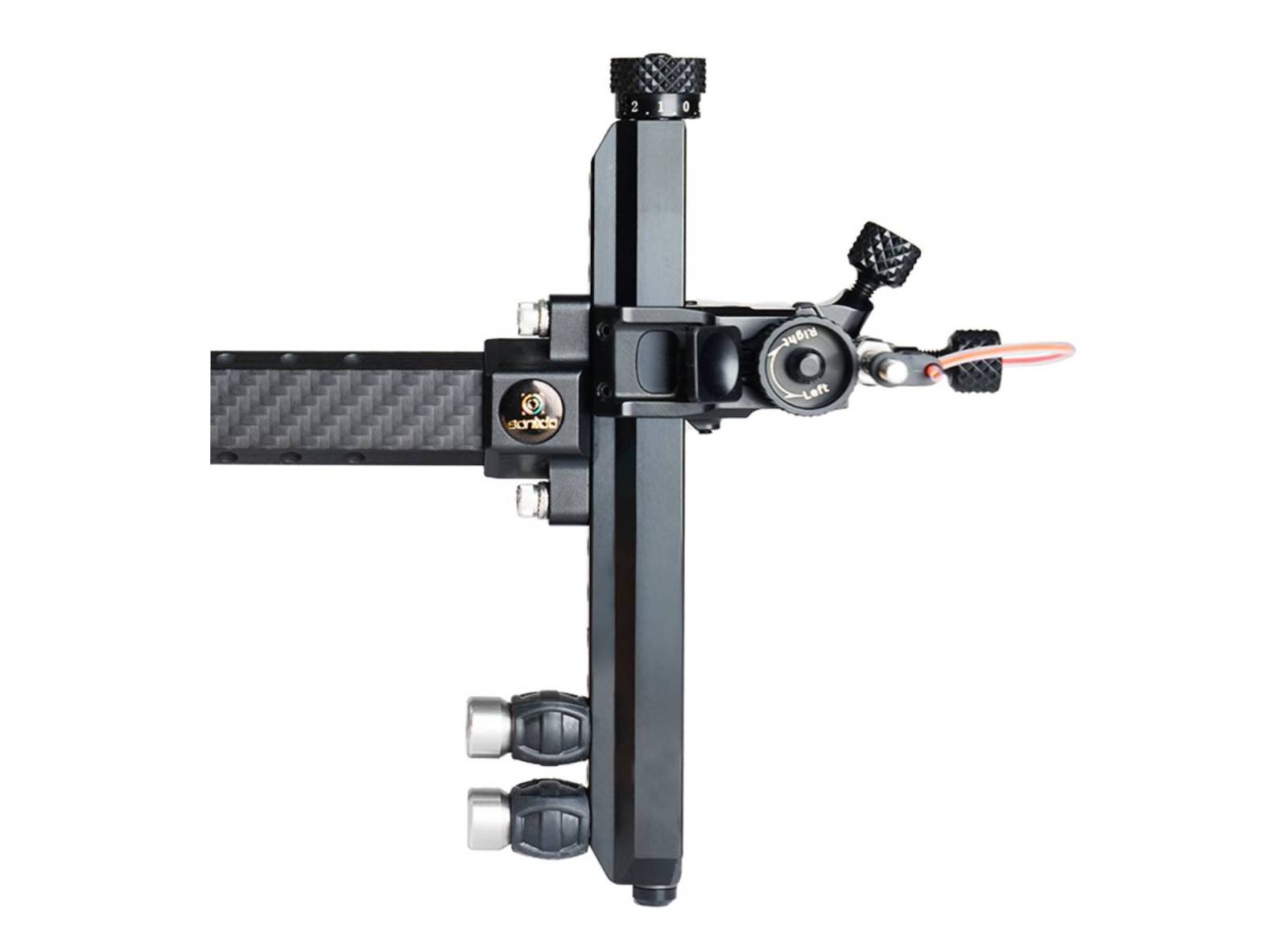

SANLIDA MIRACLE 10 II RECURVE SIGHT 9'' EXTENSION RH BLACK

The Sanlida Miracle 10 II (an updated version of the popular X10 series) represents the perfect blend of high-precision engineering and exceptional value. Designed specifically for use on Olympic-style recurve bows, this sight combines a carbon extension shaft with CNC-machined aircraft-grade aluminum structural components.

Its structure is designed to drastically reduce wind resistance (thanks to the lightened ''tunnel'' design) and absorb residual vibrations from the release, while ensuring rock-solid and repetitive aiming stability.

Key Features & Benefits for the Archer

• 9'' Carbon Shaft with Aerodynamic Design: The 9-inch structural extension reduces the overall weight on the bow hand and, thanks to its aerodynamic slots, offers maximum stability even in crosswinds on outdoor shooting ranges.

• 3-Axis Micrometric Adjustment: Vertical and horizontal movements are assisted by a high-precision micro-click system with a standard graduated scale. It allows for extremely fine adjustments to perfectly center the shot pattern.

• Quick Release Lock: The scope carriage features a quick release system to cover large distances in seconds and a removable mounting head, ideal for storing the scope in the case without losing the pin calibration.

• Integrated Damping System (Dampers): Includes two vibration dampeners directly mounted on the vertical guide, essential for protecting the components from wear and tear caused by micro-traumas during release and for a smoother shooting feel.

• Stability and Locking Security: The coupling and locking system on the riser features 14 locking points positioned at 0.5'' (12.7mm) intervals, ensuring that the extension remains secure blow after blow.

Technical Specifications

• Brand: Sanlida Archery

• Model: Miracle 10 II Recurve Sight (also known as X10 Target II)

• Laterality: Right Hand Only (RH)

• Extension Length: 9 inches (~230 mm)

• Materials: High modulus carbon fiber shaft; main body and mechanical parts in CNC machined 6061 aluminum.

• Pin Thread Pitch: UNC 8-32 (Universal standard for curved diopter)

• Useful Vertical Adjustment: 120 mm on a total guide of 150 mm

• Adjustment Resolution: 20 clicks per revolution (1.05 mm per full revolution / 0.053 mm per single click)

• Weight: Approx. 255g (viewfinder only) / ~267g (including pins and accessories)

Who is it for?

The Sanlida Miracle 10 II is the ideal choice for intermediate and advanced Olympic target archers looking for a solid sight without any annoying mechanical play or tolerances, without having to invest a fortune. It's also excellent for young athletes who are developing competitively.

Package Contents

• Sanlida Miracle 10 II RH viewfinder body

• 9'' carbon extension

• Riser attachment block

• Sight pin (8-32 thread) with fiber optic

• Pair of anti-vibration dampers

• Hex key kit for assembly and adhesive graduated scale
